This manual covers the connection of the Atilla Gold Plus/Atilla Gold Plus with Automation roast machine, via ethernet to Cropster's Roasting Intelligence.
This roast machine is currently in the Beta stage of development at Cropster.
To access this integration, please register for Beta testing by completing the provided form here.
Beta testing involves the evaluation of new features by a limited group of users to uncover potential minor issues that may not be apparent during internal testing.
Your feedback is crucial in helping us improve the functionality of our product. Please let us know in case you come across any unexpected behavior.
We will be happy to assist in resolving any issues you may encounter or propose alternative connection options.
- Specifications
- Setting up a connection
- Network settings
- Roasting Intelligence (RI) Setup
- Troubleshooting
Specifications
Requirements
- Touch panel
- Ethernet cable
Supported measurements
-
Bean temperature
-
Exhaust temperature
- Drum temperature: Only available for Atilla Gold Plus machines with automation.
- Gas [mbar / %]: Only available for Atilla Gold Plus Series 2 machines.
- Gas control [%]: Only available for Atilla Gold Plus machines with automation.
- Airflow [rpm / %]: Only available for Atilla Gold Plus Series 2 machines.
- Airflow control [%]: Only available for Atilla Gold Plus machines with automation.
- Drum speed [rpm]: Only available for Atilla Gold Plus Series 2 machines.
- Drum speed control [rpm] (beta): Only available for Atilla Gold Plus machines with automation.
Atilla machines with automation track Gas and Airflow in %. Atilla Gold Plus Series 2 machines track Gas as mbar, and Airflow as rpm.
The Drum speed control feature is currently available in Beta for Atilla roast machines with automation software.
Atilla Gold Plus machines with Automation support machine event-based auto-start and end detection.
Setting up a connection
There are two ways to connect your roast machine to the network:
Via the computer
- Connect the network cable to your roaster's ethernet port
- Connect the other end to the computer's ethernet port.
- Proceed with the Network settings.
Via the network router
- Connect your network cable to your roaster's Ethernet port.
- Connect the other end to the router's Ethernet port.
- Make sure that your computer and the router are connected (via Wi-Fi or Ethernet cable).
- Proceed with the Roasting Intelligence (RI) Setup.
Network settings
When the roast machine is connected to the computer directly, you need to set up a static IP address.
Static IP address configuration - Windows 7, 8, 10
- Navigate to the Control Panel > Network and Sharing Center or Network and Internet > Network Sharing Center.
- Click Change adapter settings.
- Identify the Network connection item that refers to the connection to your machine and select that item.
💡If you are not sure which icon refers to the roast machine, simply disconnect and reconnect the Ethernet cable and check which icon changes its status. - Right-click on WiFi or Local Area Connection.
- Click Properties.
- Select Internet Protocol Version 4 (TCP/IPv4).
- Click Properties.
- Select Use the following IP Address option.
- Enter the specific IP Address for your roaster and replace the fourth number block with 42:
- IP Address: 192.168.0.42
Important: The first three blocks of the IP address need to match the IP address of your roaster, as identified via the roaster's panel. - Subnet mask: 255.255.255.0
- Leave the rest blank.
- IP Address: 192.168.0.42
- Click the OK button to submit your changes.
- Proceed with the Roasting Intelligence (RI) Setup.
Static IP address configuration - MacOS
- Navigate to
> System Settings > Network.
- Identify the Network connection item that refers to the connection to your machine and select that item.
💡If you are not sure which icon refers to the roast machine, simply disconnect and reconnect the Ethernet cable and check which icon changes its status. - Click on Details...
- Open the TCP/IP section and choose Manually next to Configure IPv4.
- Enter the specific IP Address for your roaster and replace the fourth number block with 42:
- IP Address: 192.168.0.42
Important: The first three blocks of the IP address need to match the IP address of your roaster, as identified via the roaster's panel. - Subnet mask: 255.255.255.0
- IP Address: 192.168.0.42
- Click the OK button to confirm the changes.
- Proceed with the Roasting Intelligence (RI) Setup.
Roasting Intelligence (RI) Setup
Installing the Roasting Intelligence (RI) software
- Download the Roasting Intelligence from:
- https://download.cropster.com/ - for Atilla Gold Plus Series 1 & 2
- https://download-beta.cropster.com/index5.html - for Atilla Gold Plus with automation/RE
-
Complete the installation process by following the steps provided.
- Double-click the Cropster icon on your desktop to access RI.
- Double-click the Cropster icon on your desktop to access Roasting Intelligence (RI).
- Click the green Login with the browser button.
💡 Select the "Remember me on this device" option to save your login credentials for future access.
- You will be directed to the C-sar browser.
- Enter your Username* and Password* and click the green Sign in with password button.
💡You need to use the same credentials that you use to access the online platform C-sar.
Check out the Release notes for every version of RI5 to stay updated on the latest features and improvements. You can access the Release notes directly in RI by clicking on Help > Release Notes.
Establishing a connection to the machine
The images displayed below are meant to serve as reference examples; however, they may differ slightly from what you will see on your screen, especially in the Machine > Controls tab.
Before you begin configuring your roast machine, ensure that you have added it via the online platform C-sar.
-
Click
Preferences > Machine > Configuration at the bottom left to access the Preferences screen.
-
To choose the Roast machine, click on the dropdown menu in the Machine section.
-
By clicking on the + Add connector option, you can choose your connector from the available options in the dropdown list.
-
You need to select Atilla Gold Plus PLC from the dropdown.
- Click Select to add the connector.
-
Navigate to the Machine > Measurements tab. All supported measurements will be displayed.
-
To activate the measurements, simply click the green toggle button.
-
Switch on the measurements you would like to enable and select Atilla Gold Plus PLC from the dropdown.
💡 Make your measurement readouts more compact. Choose the size of your measurement readouts by selecting either the Small or Large view for display. -
Change the order of the measurements by using the
Drag and Drop icon and move it into position.
💡You can also customize the color of each measurement by clicking on the colorful dots on the right side of the screen. - Navigate back to the Machine > Configuration tab and click on the
Gear icon in the Connector setup section next to the previously added connector to open and configure more settings.
- Depending on your Atilla Gold Plus, select the version (RI Beta only) and the default IP address for the connection.
- Enter the IP address: 192.168.0.20
- Version:
- Atilla Gold Plus Series 1 & 2: Atilla Gold Plus
- Atilla Gold Plus with automation: Atilla Gold Plus & Automation
Atilla Gold Plus with automation supports Gas control range 1-100% - Atilla Gold Plus with automation RE: Atilla Gold Plus & Automation RE
Atilla Gold Plus with automation RE supports Gas control range 0-100% - Atilla Gold Plus with automation RE: Atilla Gold Plus & Automation REVersion:
- Click OK.
- Click Save to finalize the changes.
After saving the changes, RI will automatically restart. If the setup was successful, you will see the temperature values displayed on the right-hand side of the RI screen following the restart.

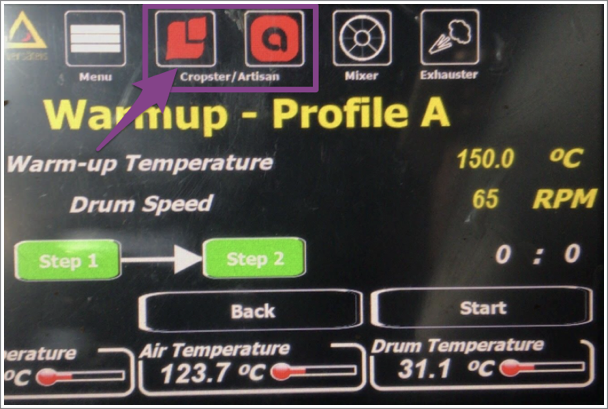

Before using Cropster's Control and Replay Assist features, make sure that the Cropster button is enabled (red) from the Atilla's HMI display:
📚 Learn more about the Roasting Intelligence (RI) Preferences.
Enabling the machine event based auto-start and end of roast detection
The roast start is triggered once the roast machine's hopper is opened, and the roast end is triggered once the roast emissions door is opened, thus releasing the roasted beans into the cooling tray.
By following the steps below you can enable machine event-based auto-start and end of roast detection:
- Log in to RI.
- Navigate to
Preferences > Roasting > Smart features tab.
- Scroll down to the Smart detection section.
- Enable the machine-based auto-start and end of roast detection by clicking on the respective checkbox.
- Click Save.
Troubleshooting
If the RI indicates No source connected and/or you cannot see any measurements, please check the following:
- Is the roast machine connected to the network (router or computer)?
- If the roaster is connected to the computer directly, is the static IP address configured correctly?
- Does the IP address assigned to the roast machine match the default?
When using Replay Assist, do not use any other temperature controlling software in parallel. Any gas/airflow/drum speed changes from a concurrent client disables Replay assist for the remainder of the roast.
Congratulations! You have successfully set up the Cropster Roasting Intelligence!
Check out the Roasting Intelligence (RI5) - Getting Started manual and enjoy tracking your first roasts! More manuals and videos can be found on help.cropster.com.
