      Innoenvas (via Ethernet) - Roasting Intelligence (RI) Setup (alpha)

      In this article, you will learn how to connect a Innonenvas roast machine via Ethernet, to Cropster's Roasting Intelligence.

      This roast machine is currently in the alpha stage of development at Cropster.

      Alpha means we have limited experience with the Innoenvas roast machine. The setup instructions below have yet to be confirmed by the manufacturer. Therefore, the configuration in this article may not work across the entire model range.

      If you have not received an invitation to join the beta program for this integration, but are keen on participating and testing this new feature, please sign up here.

      Once the connection is established, you may encounter some daily use flaws. It will be necessary to share such feedback with us, so please let us know if you encounter any unexpected behavior.

      We will be happy to assist in resolving any issues you may encounter or propose alternative connection options.

        Specifications

        Requirements

        • Ethernet cable

        Supported measurements

        • Bean temperature
        • Exhaust temperature

        Setting up a connection


        Via the computer

        Screenshot 2024-09-26 at 13.42.40

        1. Connect the network cable to your roaster's Ethernet port
        2. Connect the other end to the computer's Ethernet port.
        3. Proceed with the Network settings.

        Via the network router


        Screenshot 2024-09-26 at 13.41.58

        1. Connect your network cable to your roaster's Ethernet port.
        2. Connect the other end to the routers' Ethernet port.
        3. Make sure that your computer and the router are connected (via Wi-Fi or Ethernet cable).
        4. Proceed with the Network settings.

        Network settings

        When the roaster is connected to the computer directly, you need to set up a static IP address.

        Identifying IP address


        Once you have connected the Innoenvas roast machine via Ethernet, you will need to identify the IP address assigned to your roast machine.

        Generally, the IP address can be identified via a machine's interface, by going to the Network settings/configuration.

        At Cropster, we currently lack familiarity with the touchscreen interface found on Innoenvas roast machines.

        If you're unable to locate the IP address, we recommend reaching out to the roast machine manufacturer. To assist them in providing you with the necessary information, please include a clear photo of the machine's plate or plaque that displays the serial number, along with any additional details about your specific model.

        Static IP address configuration - Windows 7, 8, 10

        1. Navigate to the Control Panel > Network and Sharing Center or Network and Internet > Network Sharing Center.
        2. Click Change adapter settings.
        3. Identify the Network connection item that refers to the connection to your machine and select that item.
          💡If you are not sure which icon refers to the roast machine, simply disconnect and reconnect the Ethernet cable and check which icon changes its status.
        4. Right-click on WiFi or Local Area Connection.
        5. Click Properties.
        6. Select Internet Protocol Version 4 (TCP/IPv4).
        7. Click Properties.
        8. Select Use the following IP Address option.
        9. Enter the specific IP Address for your roaster and replace the fourth number block with 42:
          • IP Address:  192.168.250.42
            Important: The first three blocks of the IP address need to match the IP address of your roaster, as identified via the roaster's panel.
          • Subnet mask: 255.255.255.0
          • Leave the rest blank.
        10. Click the OK button to submit your changes.
        11. Proceed with the Roasting Intelligence (RI) Setup.

          Static IP address configuration - MacOS

          1. Navigate to  > System Settings > Network.
          2. Identify the Network connection item that refers to the connection to your machine and select that item.
            💡If you are not sure which icon refers to the roast machine, simply disconnect and reconnect the Ethernet cable and check which icon changes its status.

          3. Click on Details...

          4. Open the TCP/IP section and choose Manually next to Configure IPv4.
          5. Enter the specific IP Address for your roaster and replace the fourth number block with 42:
            • IP Address:  192.168.250.42
              Important: The first three blocks of the IP address need to match the IP address of your roaster, as identified via the roaster's panel.
            • Subnet mask: 255.255.255.0
          6. Click the OK button to confirm the changes.
          7. Proceed with the Roasting Intelligence (RI) Setup.

            Roasting Intelligence (RI) Setup

            Installing the Roasting Intelligence (RI) software

            1. Download RI.

            2. Complete the installation process by following the steps provided.

            3. Double-click the Cropster icon on your desktop to access RI.

            4. Enter your username and password.
              Use the same login information that you use to access the online platform C-sar.

            5. Click the Login button.

            Check out the Release notes for every version of RI5 to stay updated on the latest features and improvements.

            You can access the Release notes directly in RI by clicking on Help > Release Notes.


            Establishing a connection to the machine

            1. If you are setting up RI for the first time, click the Select machine button in the banner at the top or click Preferences > Machine > Configuration bottom left to access the Preferences screen.
              📚 Learn how to use the keyboard shortcuts in RI.
            2. To choose the Roast machine, click on the dropdown menu in the Machine section.

              💡 After selecting the machine from the dropdown menu, the roast machine settings may automatically be filled in. You have the flexibility to edit these settings at any time to ensure they align with the specifications of your roasting machine.

              📚 Learn how to add a new roast machine.
            3. After selecting the machine all supported measurements will load.
              Change the order of the measurements by using the  Drag and Drop icon and moving it into position.
            4. Switch on the measurements you would like to enable and select Generic Modbus over Network (TCP) from the dropdown for the measurements.
              💡 Make your measurement readouts more compact. Choose the size of your measurement readouts by selecting either the Small or Large view for display.
              Screenshot 2024-10-03 at 17.00.26
            5. Check the IP address from your roast machine's display.
              📚 Learn how to Identify the IP address.
            6. Click on the Gear icon to open the more settings.

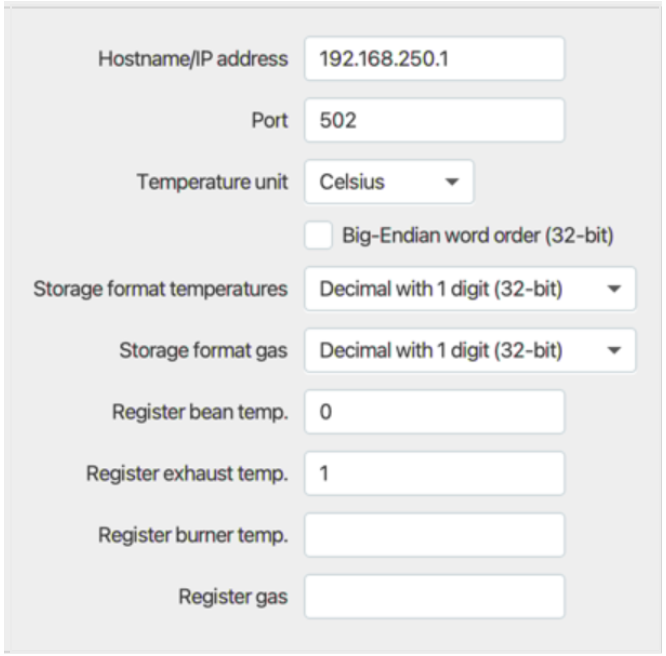

            7. Copy the settings as shown in the screenshot below, and define a Hostname/IP address, and Temperature unit:
              • Hostname/IP address: Enter the IP address, as shown from the Innoenvas roast machine's display.
                In this example, the IP address of the Innoenvas machine is 192.168.250.1.

              • Temperature unit: Choose Celsius or Fahrenheit according to the temperature unit displayed from the machine's temperature readouts.
                Screenshot 2024-10-03 at 16.58.02
                💡 The Hostname/IP address may differ from your machine's.

            8. Leave the empty fields as they are.
            9. Click OK.
            10. Click Save to finalize the changes.

              After saving the changes, RI will automatically restart. If the setup was successful, you will see the temperature values displayed on the right-hand side of the RI screen following the restart.

              Screenshot 2024-10-01 at 15.05.36

              📚 Learn more about the Roasting Intelligence (RI) Preferences  .

              Troubleshooting


              If the RI indicates No source connected and/or you cannot see any measurements, please check the following:

              • Is the IP address correct?
              • Is the static IP address set up?

              Congratulations! You have successfully set up the Cropster Roasting Intelligence!

              Check out the Roasting Intelligence (RI5) - Getting Started manual and enjoy tracking your first roasts! More manuals and videos can be found on help.cropster.com.
