Buehler Roastmaster (from 2016 onwards) - Roasting Intelligence (RI) Setup

This manual covers the connection of the Buehler RoastMaster manufactured from 2016 onwards to Cropster's Roasting Intelligence.



Specifications

Requirements

  • Siemens Simatic PLC
  • Ethernet cable

Supported measurements

  • Bean temperature
  • Burner temperature
  • Afterburner temperature
  • Drum pressure (pa)
  • Airflow (%)
  • Drum Speed (Hz)

Setting up a connection

There are two ways to connect your roast machine to the network:

  1. Via the computer directly
  2. Via the network router

Via the computer


Screenshot 2024-09-26 at 13.42.40

  1. Connect the network cable to your roaster's ethernet port
  2. Connect the other end to the computer's ethernet port.
  3. Proceed with the Network settings.

Via the network router


Screenshot 2024-09-26 at 13.41.58

  1. Connect your network cable to your roaster's ethernet port.
  2. Connect the other end to the routers's ethernet port.
  3. Make sure that your computer and the router are connected (via wifi or ethernet cable).
  4. Proceed with the Roasting Intelligence (RI) Setup.

Network settings

When the roast machine is connected to the computer directly, you need to set up a Static IP address.

Static IP address configuration - Windows 7, 8, 10

  1. Go to Control Panel > Network and Internet > Network and Sharing Center
    or enter ncpa.cpl in the Windows search field.
  2. On the left panel, click the Change adapter settings link.
  3. Identify the network adapter-icon that refers to the roast machine connection.
    If you are not sure which icon refers to the roast machine, simply disconnect and reconnect the ethernet cable and check which icon changes its status.
  4. Right-click the network adapter and select Properties.
  5. Select the Internet Protocol Version 4 (TCP/IPv4) option and click the Properties button.
  6. Select Use the following IP Address option.
  7. Enter the specific IP Address for your roaster and replace the fourth number block with 42:
    In this example, the IP address of the machine is 192.168.1.10.
    • IP Address: 192.168.1.10
      Important: The first three blocks of the IP address need to match the IP address of your roaster, as identified via the roaster's panel
    • Subnet mask: 255.255.255.0
    • Leave the rest blank.
  8. Click the OK button to submit your changes.
  9. Proceed with the Roasting Intelligence (RI) Setup.

    Static IP address configuration - MacOS

    1. Navigate to  > System Preferences > Network
    2. Identify the Network connection item that refers to the connection to your machine and select that item.
      💡If you are not sure which icon refers to the roast machine, simply disconnect and reconnect the Ethernet cable and check which icon changes its status.
    3. Click on Details...

    4. Open the TCP/IP section and choose Manually next to Configure IPv4.
    5. Enter the specific IP Address for your roaster and replace the fourth number block with 42:
      • IP Address: 192.168.1.10
      • Subnet mask: 255.255.255.0
    6. Click the OK button to confirm the changes.
    7. Proceed with the Roasting Intelligence (RI) Setup.

    Roasting Intelligence (RI) Setup

    Installing the Roasting Intelligence (RI) software

    1. Download RI.

    2. Complete the installation process by following the steps provided.

    3. Double-click the Cropster icon on your desktop to access RI.

    4. Click the green Login with the browser button.
      💡 Select the "Remember me on this device" option to save your login credentials for future access.
      Screenshot 2025-03-26 at 12.10.43
    5. You will be directed to the C-sar browser.
      Screenshot 2025-03-26 at 11.46.59

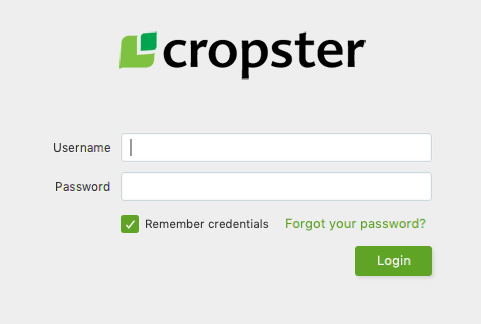

    6. Enter your Username* and Password* and click the green Sign in with password button.
      💡
      You need to use the same credentials that you use to access the online platform C-sar.

     Check out the Release notes for every version of RI5 to stay updated on the latest features and improvements. You can access the Release notes directly in RI by clicking on Help > Release Notes.

    Establishing a connection to the machine

    The images displayed below are meant to serve as reference examples; however, they may differ slightly from what you will see on your screen.


    Before you begin configuring your roast machine, ensure that you have added it via the online platform C-sar.

    1. Click Preferences > Machine > Configuration at the bottom left to access the Preferences screen.

    2. To choose the Roast machine, click on the dropdown menu in the Machine section.

    3. By clicking on the + Add connector option, you can choose your connector from the available options in the dropdown list.

    4. You need to select Bühler PLC from the dropdown.
    5. Click Select to add the connector.
      Screenshot 2025-02-25 at 13.19.20

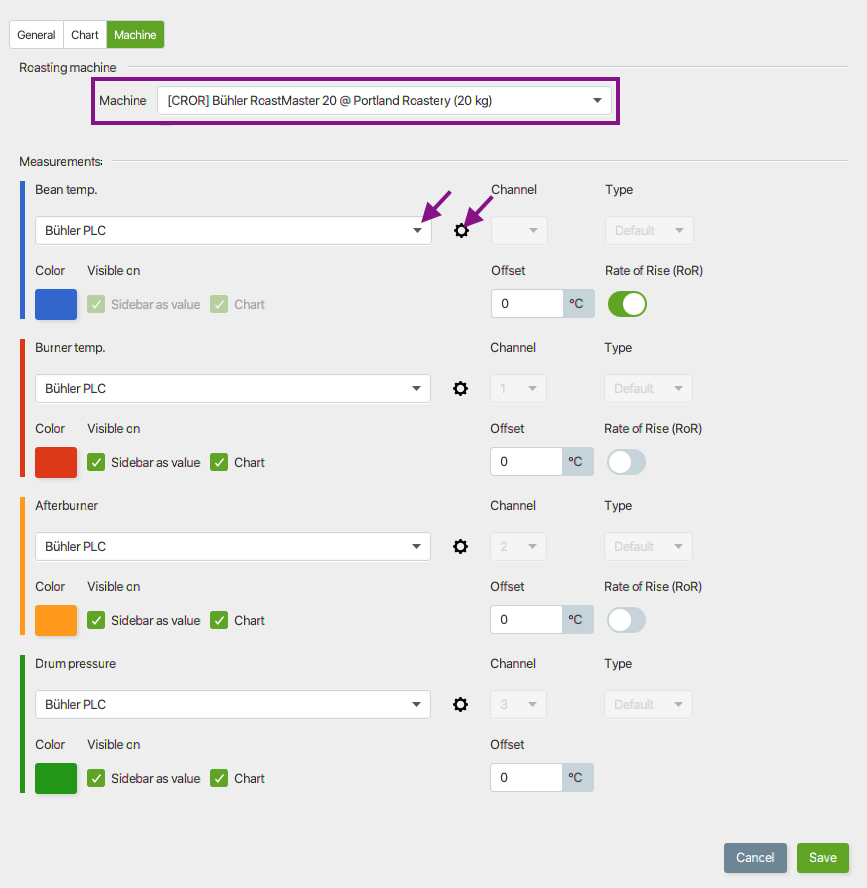

    6. Navigate to the Machine > Measurements tab. All supported measurements will be displayed.

    7. To activate the measurements, simply click the green toggle button.

    8. Switch on the measurements you would like to enable and select Bühler PLC from the dropdown.
      💡 Make your measurement readouts more compact. Choose the size of your measurement readouts by selecting either the Small or Large view for display

    9. Change the order of the measurements by using the  Drag and Drop icon and move it into position.
      💡You can also customize the color of each measurement by clicking on the colorful dots on the right side of the screen.
      Screenshot 2025-04-01 at 10.09.42

    10. Navigate back to the Machine > Configuration tab and click on the gear-png-1Gear icon in the Connector setup section next to the previously added connector to open and configure more PLC IP settings.

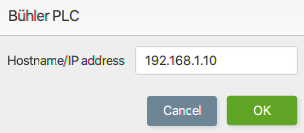

    11. Enter the IP address of the roast machine.
      The default for Bühler roasters is 192.168.1.10
    12. Select the Version (RoastMaster 20).
      Screenshot 2024-10-01 at 12.13.22
    13. Click OK.
    14. Click Save to finalize the changes.

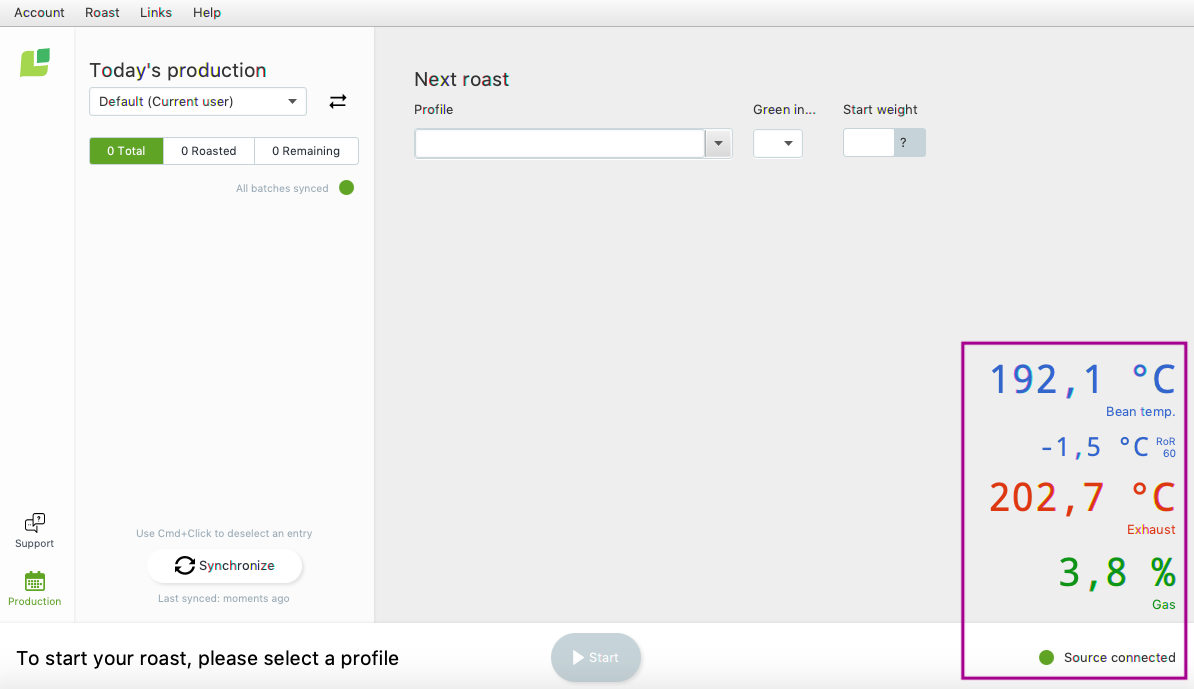

    After saving the changes, RI will automatically restart. If the setup was successful, you will see the temperature values displayed on the right-hand side of the RI screen following the restart.

    Screenshot 2025-03-31 at 13.05.11-1

      📚 Learn more about the Roasting Intelligence (RI) Preferences.


      Troubleshooting

      If the RI indicates No source connected and/or you cannot see any measurements, please check the following:

      • Is the roast machine connected to the network (router or computer)?
      • If the roaster is connected to the computer directly, is the static IP address configured correctly?
      • Does the IP address assigned to the roast machine match the default?

      Congratulations! You have successfully set up the Cropster Roasting Intelligence!

      Check out the Roasting Intelligence (RI5) - Getting Started manual and enjoy tracking your first roasts! More manuals and videos can be found on help.cropster.com.
