      Coffeetool Manual R-models (from September 2015 onwards) with Gas Control, Airflow Control, and Drum Speed Control measurements - Roasting Intelligence (RI) Setup

      This manual shows you how to setup Gas, Airflow, and Drum Speed Control on Coffeetool machines manufactured from September 2015 onwards to Cropster's Roasting Intelligence.


      This machine integration is in the process of being transitioned from a Beta version of the Roasting Intelligence (RI) software to the newer RI5, and currently, requires a setup on RI4.

      If you notice any inconsistencies in the following manual that prevent you from connecting your machine, please contact Customer Support and we will help you get set up.

      Supported measurements

      Controls capability machine requirements

      Manufactured 2015-2019
      • Allen Bradley Micro 820 PLC.
      • Read & Control of Gas, Airflow, and Drum Speed.
      • Can be controlled from the HMI and PC at the same time.
      Manufactured June 2019-June 2021
      • Schneider M241 Series PLC.
      • Read only.
      Manufactured June 2021 onwards
      • Schneider M241 Series PLC.
      • Read & Control of Gas, Airflow, and Drum Speed.
      • Requires switching between HMI control mode/PC control mode.

      Roasting Intelligence Setup

      Installing the Roasting Intelligence software

      1. Download RI.

      2. Complete the installation process by following the steps provided.

      3. Double-click the Cropster icon on your desktop to access RI.

      4. Enter your username and password.
        Use the same login information that you use to access the online platform C-sar.

      5. Click the Login button.

      Establishing a connection to the machine

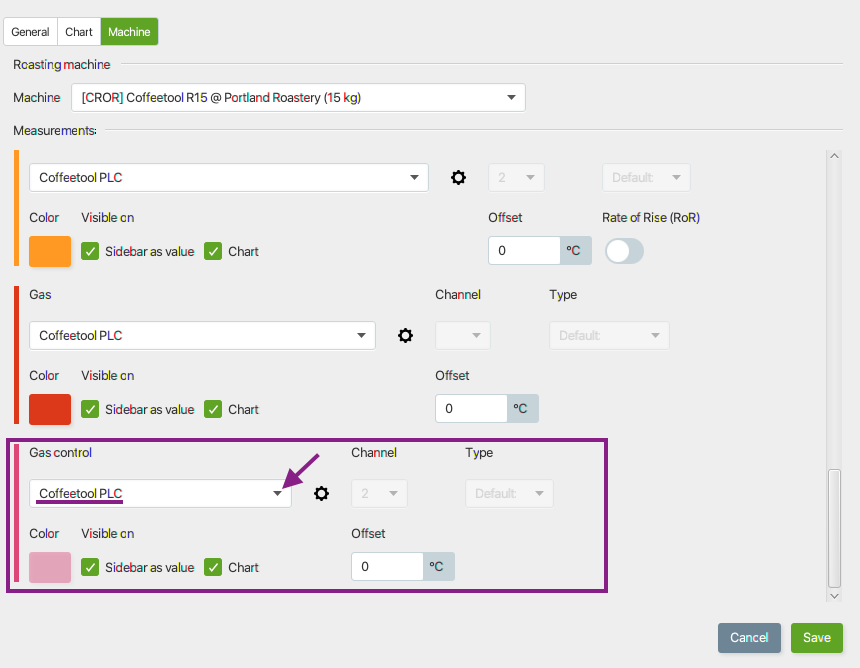

      1. Navigate to Account > Preferences > Machine tab.
      2. Select the Roast machine you would like to connect from the dropdown menu (e.g. Coffeetool R15).
      3. Select Coffeetool PLC from the dropdown for all measurements.
      4. Click Save.
      5. The RI requires a restart to apply the settings.

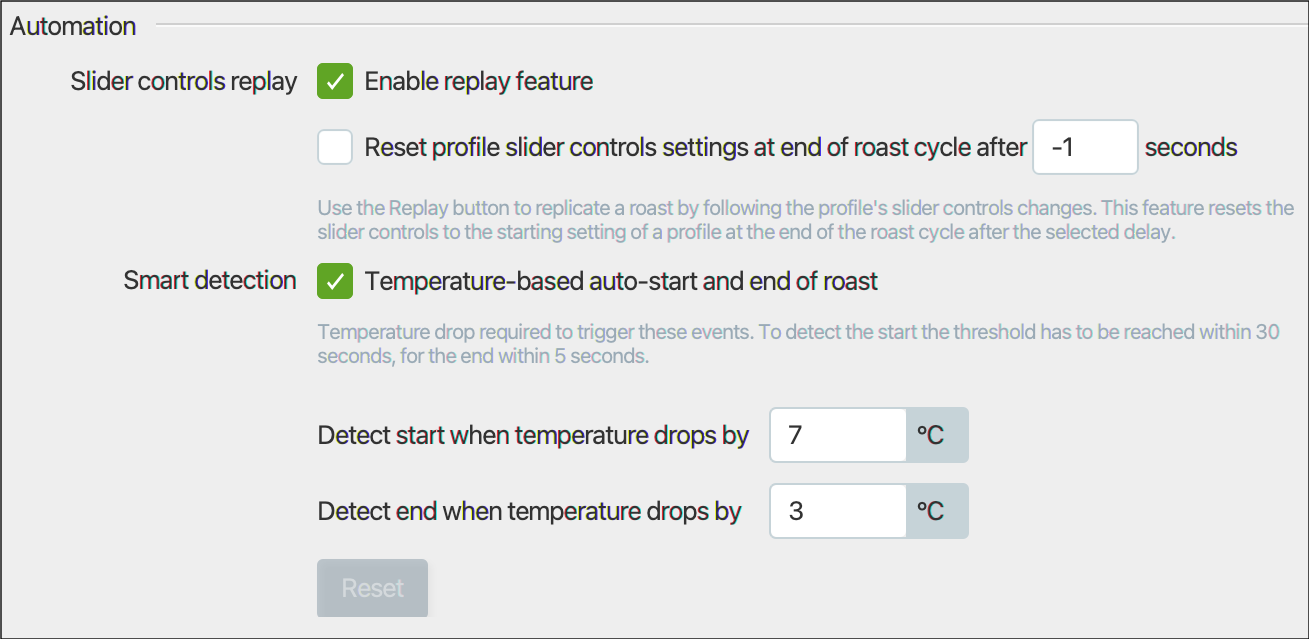

      📚 Learn more about the Roasting Intelligence (RI) and  Replay Assist Preferences.

      Congratulations! You have successfully set up the Cropster Roasting Intelligence!
