How to set the RoR within the RI

The following article and its screenshots refer to Roasting Intelligence (RI5).

In case you previously used Roasting Intelligence (RI4) we kindly invite you to check the newly improved features of RI5.

To upgrade to RI5, please download Roasting Intelligence (RI5).

Rate of Rise (RoR) setup

To set up the RoR within the Roasting Intelligence (RI), follow the steps below:

  1. Log into Roasting Intelligence (RI).
  2. Navigate to the gear-png-2 Preferences on the bottom left side of the screen.
  3. Select the Roasting tab and select Rate of Rise (RoR).
    Screenshot 2024-04-03 at 08.57.06
  4. Choose between Recommended, Sensitive, Noise smoothing, then select your preferred Time expression unit.
  5. Click Save to apply the changes.

We suggest using the recommended (standard) RoR curve setting. The time expression doesn't affect the RoR calculation, but only shows your preferred measurement unit for temperature increments (default: 60s).

Disable/enable RoR for a measurement

  1. Log into the Roasting Intelligence (RI).
  2. Navigate to the gear-png-2 Preferences on the bottom left side of the screen.
  3. Select the Machine tab and Configuration
    Screenshot 2024-04-03 at 08.53.25
  4. Scroll down to the Measurements section
  5. Click on the respective checkbox next to Rate of Rise at the measurement you would like to enable RoR.
  6. Click Save to apply the changes.

📚 Learn more about the Rate of Rise (RoR) settings.

Troubleshooting


If the RoR has been turned on, but it still does not display from your chart mid-roast, please follow the instructions below to reset the RoR to its default ranges:

  1. Log into the Roasting Intelligence (RI).
  2. Navigate to the gear-png-2 Preferences on the bottom left side of the screen.
  3. Select the Roasting tab and Charts and comments.

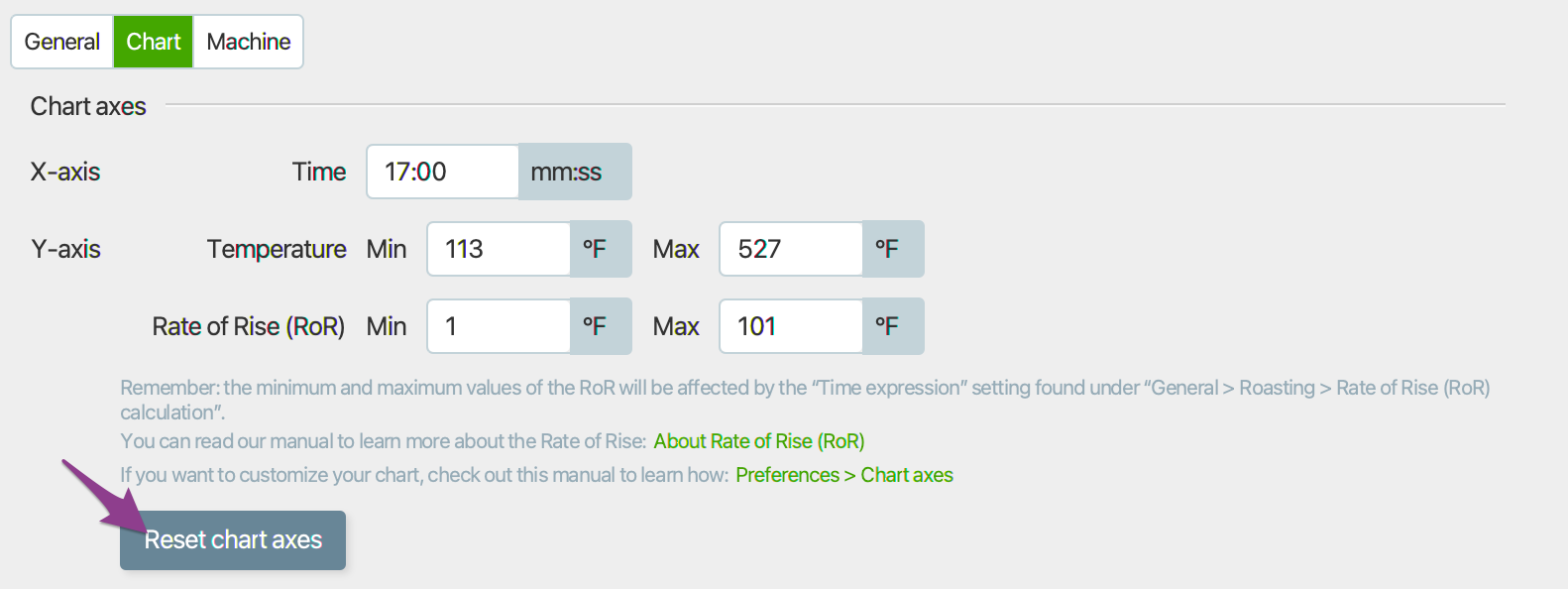

    Screenshot 2024-01-10 at 11.54.25
  4. Click the Reset chart axes button.
  5. Click Save to apply the changes.

Related content


Congratulations! You are now ready to set the Rate of Rise (RoR) within the Roasting Intelligence (RI)

Your opinion matters. If you have further questions, feedback, or concerns, please feel free to reach out by submitting a support ticket directly from support.cropster.com
